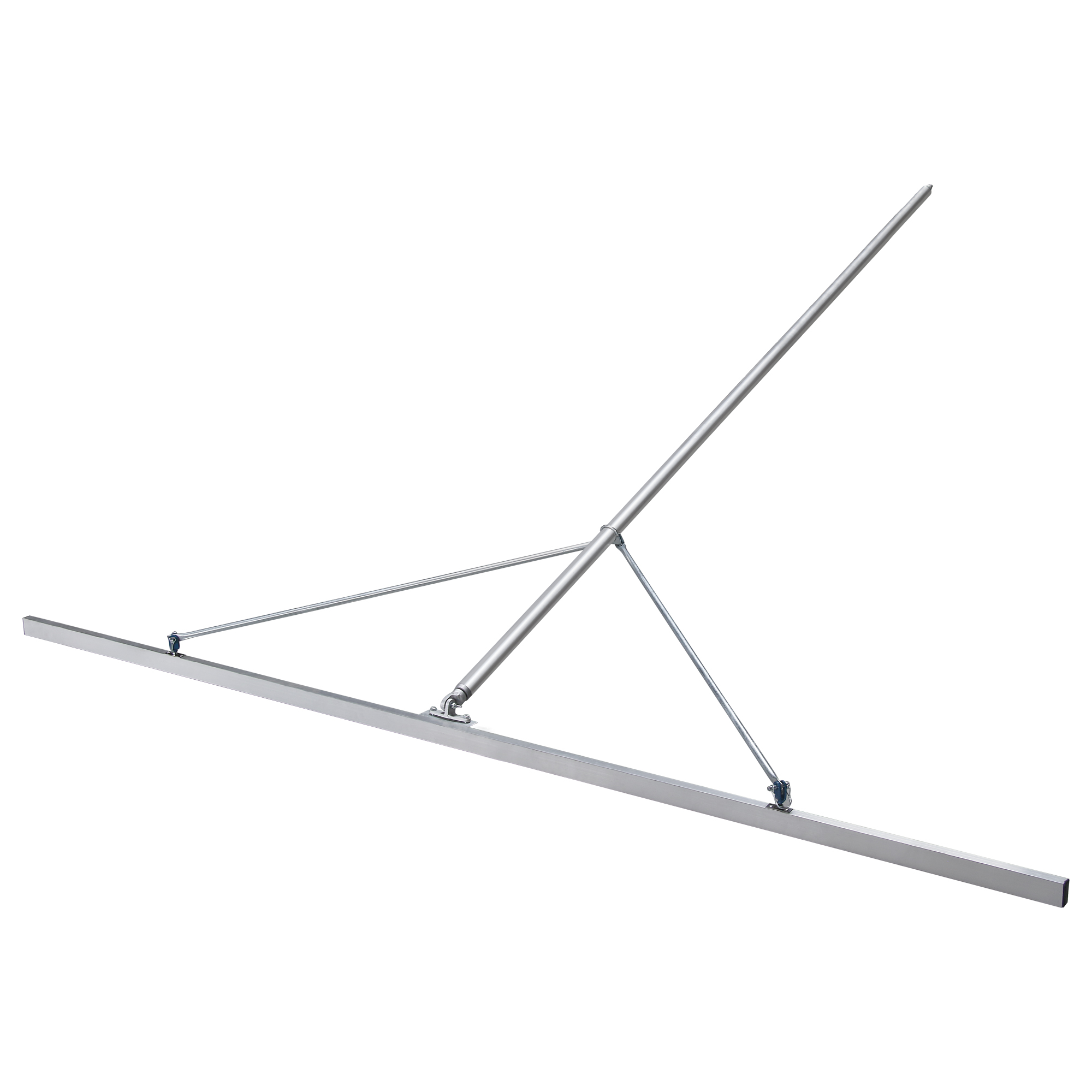

12' Aluminum Paver's Straightedge with 10' Handle & Braces

12' Aluminum Paver's Straightedge with 10' Handle & Braces
SKU: CC712

Strong, lightweight aluminum Paver's Straightedge. Quality material won't rust extending the life and use of tool. This straightedge is built for strength and rigidity, but lightweight enough for the largest of jobs. This durable and accurate highway straightedge and checking tool is lightweight enough to easily maneuver around large slabs for checking and inspecting. The 12' tool moves along large slabs. The rectangular blade is 2" tall and 1" wide for proper coverage. Plastic end caps extend the life of the tool by eliminating the opportunity for concrete and other materials to build-up within the blade. Braces extend from the blade up to the handle for balance and straightness. Quick release pins on the braces allow for ease in set up and breakdown of the tool. The braces connect to a collar for easy tool adjustments. A threaded handle socket connect the handle and blade. The bracket adjusts 180° to go back and forth along a job. The toothed bracket tightens to set and keep a desired angle. A 10' x 1-3/4" magnesium threaded handle (CC228) completes the tool. Use with handle adapters for use with a button handle. Must ship via truck due to length.

  • Strong lightweight aluminum construction
  • 1 In. x 2 In. straightedge
  • Makes inspection of slabs easy
  • Plugged ends eliminate build -up in tool
  • Comes with braces with quick release pins
  • Includes adjustable socket bracket
  • Includes 10 Ft. magnesium threaded handle
  • Must ship via truck
Products specifications
NameValue
Length144" (3.7M)
Width1" (25.4mm)
Height2" (50.8mm)
Thickness1/8" (3.2mm)
MaterialAluminum Blade & Bracket; Steel Braces; Magnesium Handle
Package ContentsBlade, Braces, and Handle with Bracket, Unassembled
Blade TypeStraightedge
Blade MaterialAluminum
Blade Length12' (3.7M)
Blade Width1" (25.4mm)
BracketThreaded Bull Float Bracket
HandleThreaded Bull Float Handle (CC228)
Handle MaterialExtru-Lite™ Magnesium
Handle Length120" (3048mm)
Handle Diameter1-3/4" (44.5mm)
Country of OriginUnited States with global materials
ShippingFreight
